RE-501 rotary evaporator

Rotating bottle:5L
Recovery bottle:3L
Main engine speed:0-120RPM

Features of rotary evaporator:

The RE-501 compact rotary evaporator is designed to be used within the laboratory. There is a large bathtub for a 5L flask. Continuous reflow is carried out using a 3L receiving bottle, a return valve, and a backside drain valve for the receiving bottle. Manual lifting is possible. The heating temperature ranges from ambient to 399 °C.

Advantages of rotary evaporator:

  1. Quick and straightforward lifting mechanism.
  2. The evaporator may be tilted horizontally within the vary of 0-45°.
  3. High evaporation price of the vertical condensation system.

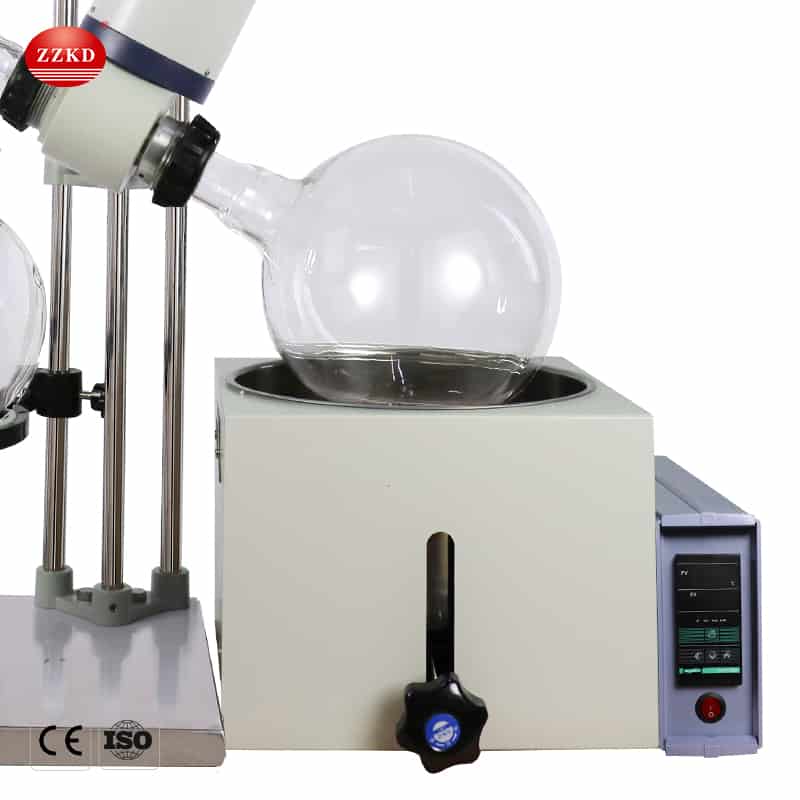

  4. Heating Tank: Stainless metal heating tube provides a heat source. The temperature range will be RT~99 °C with water. The water tank is cylindrical and manufactured from high-quality chrome steel. So it’s corrosion-resistant and sturdy. The tanks can be found for 2-20liter rotating flask heated. Moreover, the tank can be moved in accordance with the rotating flask size.
  5. Vacuum Sealing: PTFE evaporating pipe, good sealing, and heat-resisting.The joint part is a sealed Fluorine rubber mat which brings good efficiency.
  6. Automatic temperature management digital show.

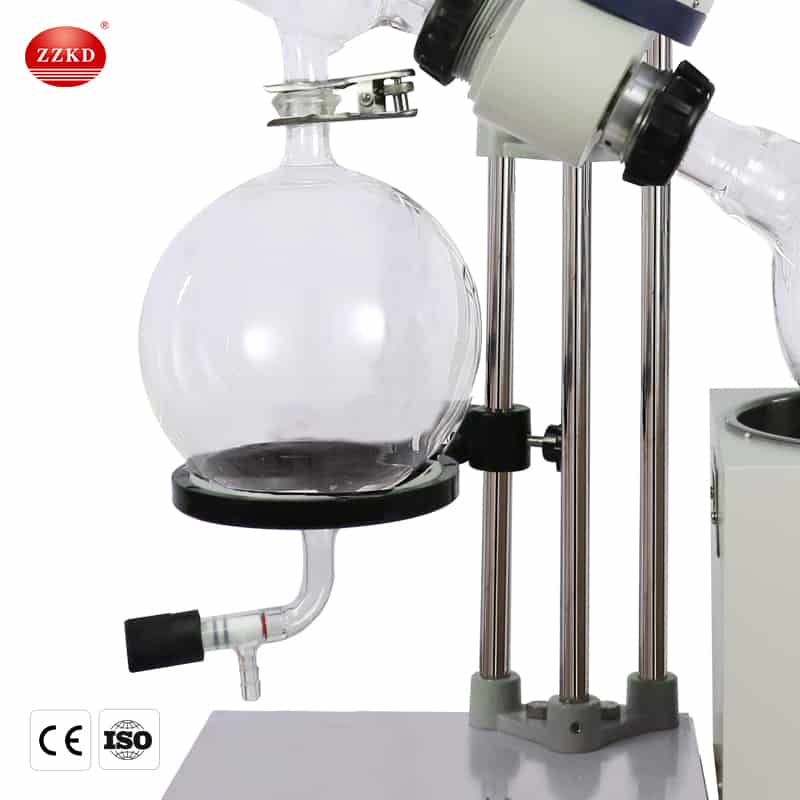

  7. Rotating flask and Collection flask.
  8. The flasks are made from GC-17 excessive borosilicate glass which is blown by hand. Their intensity, concentricity, glossiness, and floor end are higher than tough flasks.
    RE-501 rotary evaporator RE-501 rotary evaporator

Grouped equipment:

RE-501 rotary evaporator: DLSB-10/10Low temperature coolant circulation pump and SHZ-D  circulating water vacuum pump.

After-sales service:

  1. Provide targeted installation videos;
  2. Under the premise of correct installation, regular maintenance and use, we guarantee a one-year warranty;
  3. After the expiration of the warranty period, the products sold by our company enjoy lifetime warranty repairs, and we only charge the cost price for replacing the standard parts and seals of the product;
  4. The technicians put forward reasonable suggestions based on the use of the product, and assist the customer to choose the appropriate model;
  5. Provide 24-hour technical consultation response.

FAQ:

  1. What reaction is the rotary evaporator generally used for?
    Solid-liquid separation, sturdy acid, or weak base reaction. Can not carry out sturdy alkali response, liquid-liquid separation, no azeotrope.
  2. How to add materials when the rotary evaporator is used?
    The materials contained within the rotary evaporator are generally one-half of the rotating bottle, or a little greater than one-half.
  3. What are the steps for utilizing the rotary evaporator?
    After adjusting the place of the rotary evaporator and the tub, turn on the vacuum. The materials could be sucked into the rotating bottle with a hose on the feeding port. Turn on the low-temperature coolant circulation pump. The water bath must be powered on after including the medium. Turn on the management change, regulate the knob to the optimal velocity to get well the solvent. Turn off the vacuum pump, activate the switch to launch the fuel, and take out the dissolved coal in the assortment bottle.

    Model

    RE-201D

    RE-301

    RE-501

    Evaporating Flask(L)

    2

    3

    5

    Receiving Flask(L)

    1

    2

    3

    Rotating Motor(W)

    40(Stepless speed regulation)

    40(Stepless speed regulation)

    40(Stepless speed regulation)

    Rotating Speed(R/min)

    0-120

    0-120

    0-120

    Water(Oil)Bath Power(W)

    1200

    1500

    1500

    Temp Control Mode/Range

    Intelligent digital/RT-399℃

    Intelligent digital/RT-399℃

    Intelligent digital/RT-399℃

    Temp Resolution

    ±2℃

    ±2℃

    ±2℃

    Evaporation Rate(L/H2O)

    ≥1

    ≥1.5

    ≥1.5

    Max. Vacuum Degree

    <133pa(1.33mbar,1Torr,0.098Mpa)

    <133pa(1.33mbar,1Torr,0.098Mpa)

    <133pa(1.33mbar,1Torr,0.098Mpa)

    Lifting Height(mm)

    0-150

    0-120

    0-120

    Water Bath Size

    Φ24*15

    Φ26*15

    Φ28*17

    Condenser

    Vertical with charge pipe, large condenser,evaporating pipe

    Vertical with charge pipe, large condenser,evaporating pipe

    Vertical with charge pipe, large condenser,evaporating pipe

    Lifting Mode

    Oil bath Manual Lifting

    Oil bath Manual Lifting

    Oil bath Manual Lifting

    Voltage

    220V/ 50 HZ

    220V/ 50 HZ

    220V/ 50 HZ

    Sealing Mode

    PTFE,fluoro rubber sealing

    PTFE,fluoro rubber sealing

    PTFE,fluoro rubber sealing
