RE-5002 Rotary Evaporator

Features of rotary evaporator:

The evaporation capability of the RE-5002 rotary evaporator is bigger than that of a standard, static distillation equipment. Heat transmission within the heating bathtub as properly as contained in the flask is greatly improved by the rotation of the evaporating flask. Rotation significantly enlarges the lively floor inside the flask hastening the evaporation. With the liquid remaining at any one level of the flask wall for a quick while only.is topic to reduce stress through the distillation (no overheating, no incrustation). Bumping and foaming are significantly lowered by rotation.

Advantages of rotary evaporator:

1. CE, ISO licensed product patent certificate

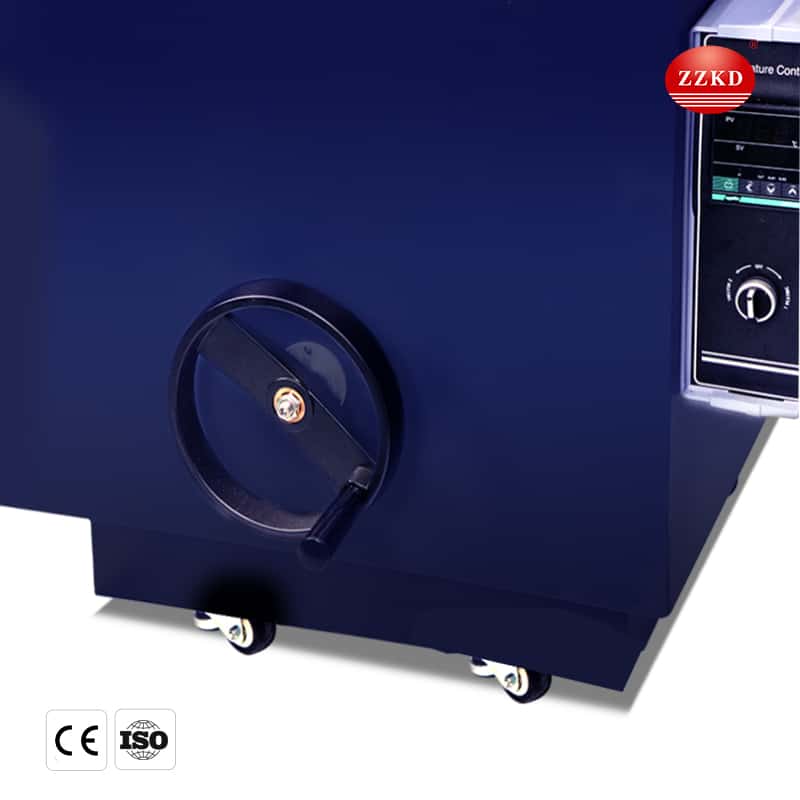

2. Manual lifting, excessive stability, knob button adjustment, digital display, handy operation.
3. The main and auxiliary double condenser design, the fabric restoration fee is high, the recovery rate can attain 95%.

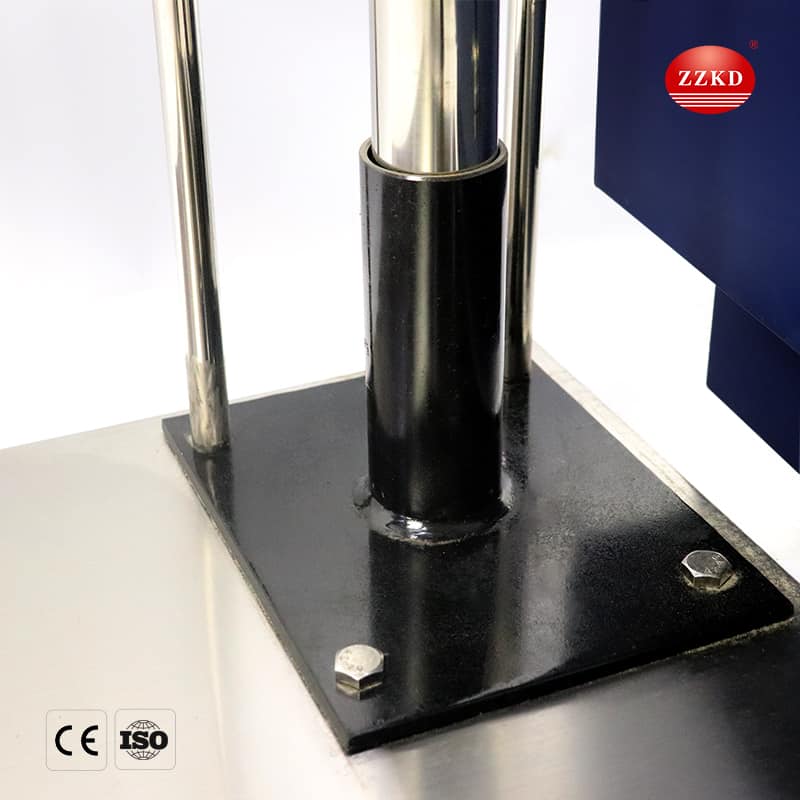

4. The bracket is made from 304 stainless-steel, which is powerful and durable. The rotating bottle, receiving bottle and condenser are made of high-quality borosilicate glass, which isn’t straightforward to interrupt.

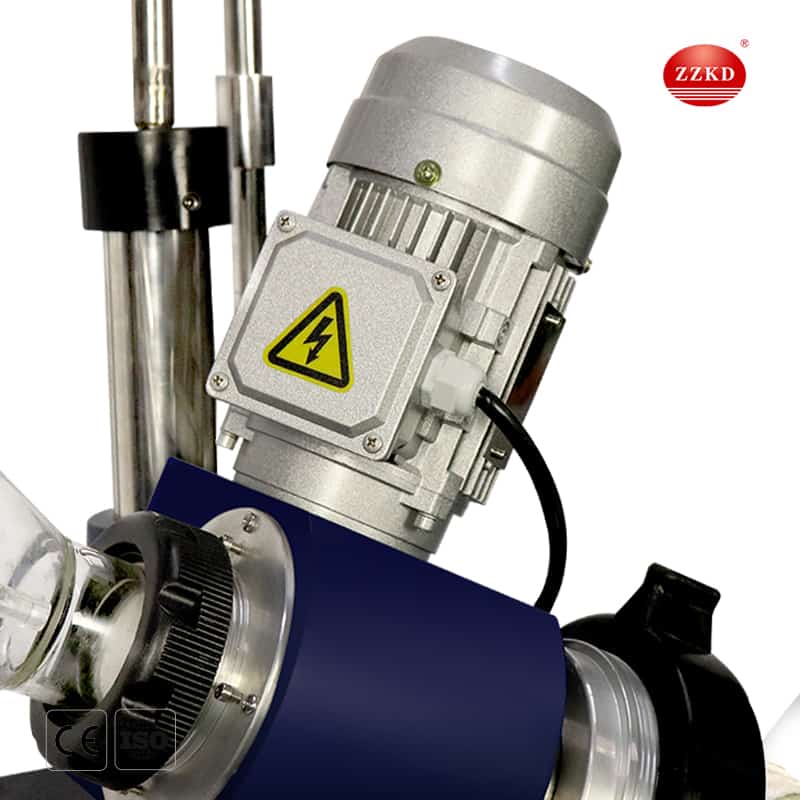

5. The rotating major engine starts stably, the speed is 0-120 (r/m), the motor and circuit adopt imported products, and may be upgraded to explosion-proof, safer and longer service life.
6. The sealing part adopts the precept of flange sealing, which can keep excessive vacuum.


Grouped equipment：

RE-5002 rotary evaporator: DLSB-30/30Low temperature coolant circulation pump and SHZ-C circulating water vacuum pump.

After-sales service:

1. Provide targeted installation videos;
2. Under the premise of correct installation, regular maintenance and use, we guarantee a one-year warranty;
3. After the expiration of the warranty period, the products sold by our company enjoy lifetime warranty repairs, and we only charge the cost price for replacing the standard parts and seals of the product;
4. The technicians put forward reasonable suggestions based on the use of the product, and assist the customer to choose the appropriate model;
5. Provide 24-hour technical consultation response.

FAQ:

1. What is the power supply of the rotary evaporator?
   Our rotary evaporator energy provide is mostly 220V50HZ and 110V60HZ.
2. How long can the rotary evaporator continue to work?
   The rotary evaporator can work all the time, however we suggest that or not it’s shut down for upkeep after running for a period of time. More frequent upkeep can enhance the service life of the tools.
3. What is the fabric recovery price of the rotary evaporator?
   The materials restoration price of the rotary evaporator produced by our company may be very excessive, and the recovery rate is mostly between 95-99%.
4. What is the distinction between the explosion-proof type rotary evaporator and the ordinary type?
   The explosion-proof rotary evaporator adopts an alternator, stepless velocity regulation (variable frequency speed regulation), brushless and no spark. The manual control swap adopts two-way control, the current is lower than 3mA, and the explosion-proof perform is sweet.


   Model	RE-1002	RE-2002	RE-5002
   Evaporating Flask（L）	10	20	50
   Receiving Flask（L）	5	10	20
   Rotating Motor(W)	180W	180W	180W
   Rotating Speed(R/MIN)	0-120	0-120	0-90
   Water(Oil) Bath Power(W)	3000	4500	7000
   Temperature Control Range	RT-399℃	RT-399℃	RT-399℃
   Temperature Fluctuation(℃)	±1℃	±1℃	±1℃
   Evaporation Rate(H2O)	>3L/h	≥5L/h	≥9L/h
   Condenser	Vertical Double Condenser	Vertical Double Condenser	Vertical Double Condenser
   Lifting Mode	Water(Oil) Bath Mannal Lifting	Water(Oil) Bath Mannal Lifting	Water(Oil) Bath Mannal Lifting
   Lifing Height(mm)	0~220	0~220	0~220
   Voltage	220V50HZ	220V50HZ	380V50HZ
   Sealing Mode	PTFE,Fluoro Rubber Sealing	PTFE,Fluoro Rubber Sealing	PTFE,Fluoro Rubber Sealing
   Note	Customized configuration is available	Customized configuration is available	Customized configuration is available
